Level Switches & Controllers

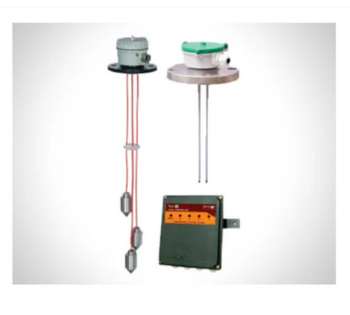

Conductivity Type Liquid Level Controller

We are one of the leading manufacturers, suppliers and dealers in India of all types of Level Gauge including Conductivity Type Liquid Level Controller. Our Level Switch are known for their high quality, accurate measurement, reliability and seamless performance. For any further information about rotameter, please contact us at the details given below.

  • Works on Conductivity principal
  • Dual Level Control Low & High
  • Electrode Material : SS 304 / SS 316 embedded in PP
  • With Electronic Control Unit, DIN Rail mounted
Conductivity Type Liquid Level Controller
Made inDelhi

Features of Conductivity Type Liquid Level Controller

Veksler offers conductivity type liquid level controller, Model CLC-19 with maximum range 10 m. This is used for reliable single/multiple level switching, of conductive liquids in various viscosities up to 200oC temperature and 20 Kg/cm2 pressure. It is available in different material of construction like MS, SS 316, SS 304, rubber/PTFE lined and enclosure protection like IP56/IP 65/Ex-proof Gr IIA and IIB to suit various service conditions. The controller is PC/PLC, DOS, alarm Annunciator configurable. Application is in : water/ waste water treatment, food/drugs/breweries plants, paper, sugar industries, acids, vegetable juice measurement etc.

Features of Conductivity Type Liquid Level Controller

  • Works on Conductivity principal
  • Dual Level Control Low & High
  • 3 different types of electrodes, fixed length and suspended type
  • Adjustable lenght as per site requirement for suspended electrodes
  • Electrode Material : SS 304 / SS 316 embedded in PP
  • With Electronic Control Unit, DIN Rail mounted
  • MS Flanged connection for fixed type sensor
  • Low cost & simple construction
  • Optical Isolation between Electrodes & Control Unit
  • Screwed/Flanged Connection
  • 20 mA, AC Current (max.)
  • Pressure: 20 kg/cm2 (max.)
  • Single/Multiple Configuration
