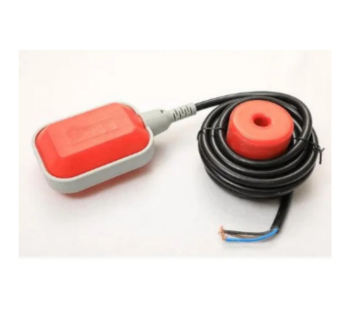

Features of Float Level Switch (Balloon Type)
It is simple, reliable, economical, long life and maintenance free. The body is made of non-toxic material so it can be used for level switching from drinking water to sewage. The switch consists of a PP (copolymer) float, freely suspended with a cable at a Desired level. A micro switch along with a steel ball are enclosed within the casing of PP Float. The float tilts upwards at an angle corresponding to a rise in liquid level. It causes the ball to move and operate a micro switch. This in turn can actuates an auxiliary device like alarm, solenoid valve, pump etc. The switch differential (dist, between switch on-off) is adjustable with a counter weight along the cable length upto a maximum of 500 mm. It can be flange mounted from tank top. A single switch can be used to control two levels - Low and High.
Features of Float Level Switch (Balloon Type)
- Simple, reliable, economical, long life and maintenance free.
- 3 to 15 Mtrs. Cable Length with adjustable counter weight
- Non Toxic Polypropylene float
- Micro Switch operated with 5A, OR 15A, 220 VAC rating
- -20 - 80o C working temperature.
- 5 Bar Max. Pressure
- Neoprene/PVC Cable
- 0.8 min Sp. Gravity of fluid
- Can be glange mounted from top of tank
