Orifice Plate Assemblies

We are one of the leading manufacturers, suppliers and dealers in India of all types of Level Gauge including Orifice Plate Assemblies. Our Level Gauge are known for their high quality, accurate measurement, reliability and seamless performance. For any further information about rotameter, please contact us at the details given below.

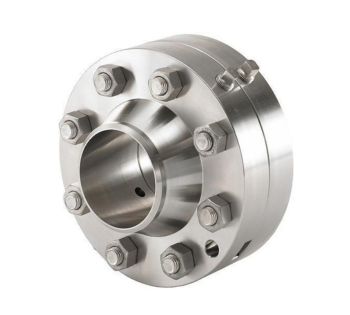

Orifice Plate Assemblies
Made inDelhi

Veksler's Orifice Plate are used extensively for Industrial Flow Measurement and can be used for clean liquids, Steam and gases application. The Orifice Plate are designed as per BS 1042/IS Standards and the accuracy is 1/2 to 1% .These can be supplied with/without matching flanges and Carrier ring.

The Plate is machined from SS 304/SS 316/Monel. Flanges can also be of different material like ASTM A 105, A 182, SS 304, SS 316 and Monel. The Flange rating may be 150#/300#/600# or more as per customer's and process requirement.

Specifications:

Orifice Plate SS 316, SS304, Monel
Line Size 15NB to 600 NB
Flanges ATM A 105, A 182, SS 304, SS 316, Monel
Optional IBR Approved Flanges
Type of Flanges Weld neck, Slip-on, Socket weld
Studs/Bolts ASTM-A-193 GR - B7
Nuts ASTM-A-193 GR - 2H
Gasket CAF/Teflon/Spiral Wound
